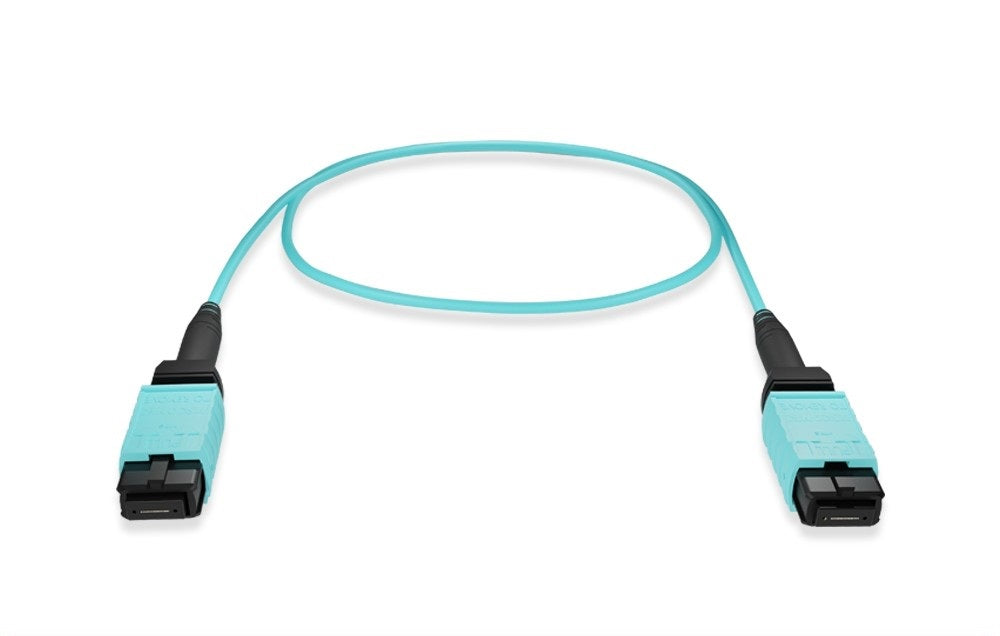

Nippon Labs MTP® 50/125 OM4 Multimode 12 Fibers Trunk Optic Cable Type B, 1M ~ 30M

Nippon Labs MTP® 50/125 OM4 Multimode 12 Fibers Trunk Optic Cable Type B, 1M ~ 30M

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out
Lengths

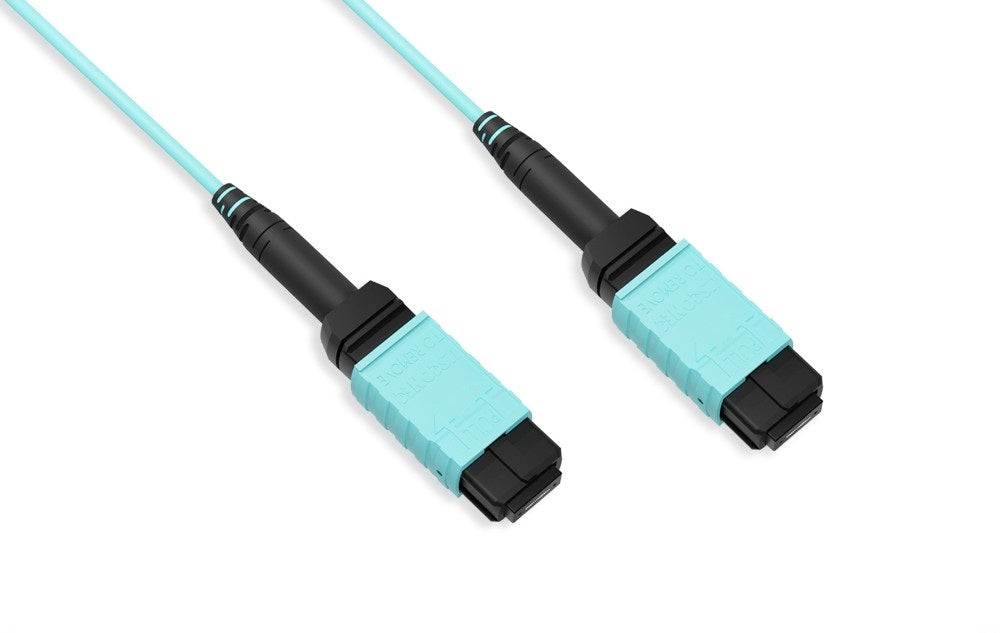

MTP® OM4 MULTI-MODE 12 FIBERS FEMALE TO FEMALE TRUNK CABLE TYPE B

  • MTP® OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
  • OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
  • With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
  • Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
  • OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
  • The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.

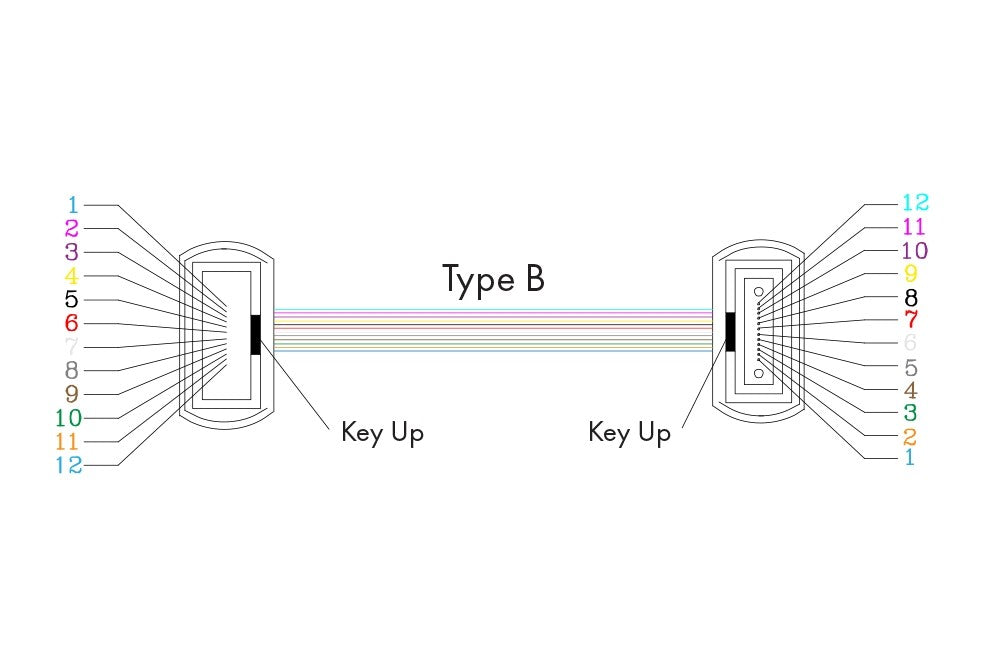

  • Connection type B (Reverse), key up to key up.
  • Use LED and VCSEL laser light sources.
  • Corning® glass 50μm core and 125μm cladding.
  • 100% Tested with report included in each cable package.
  • Dust protective cap included
  • UL listed
Fiber Connector A: US Conec MTP® Female
Fiber Connector B: US Conec MTP® Female
Fiber Mode: OM4, Multimode, 50 / 125
Fiber Count: 12 Fibers
Polish Type: UPC to UPC
Wavelength 850nm/1300nm
Insertion Loss: < 0.3 dB
Return Loss: > 20 dB
Type (Method): Type B
Jacket OD: 3.0 mm
Jacket Material: OFNP (Plenum)
Jacket Color: Aqua



Example of MTP set up for 10Gib Network with LC to LC OM4 cord

Example of MTP set up with 10G network with server and switches
