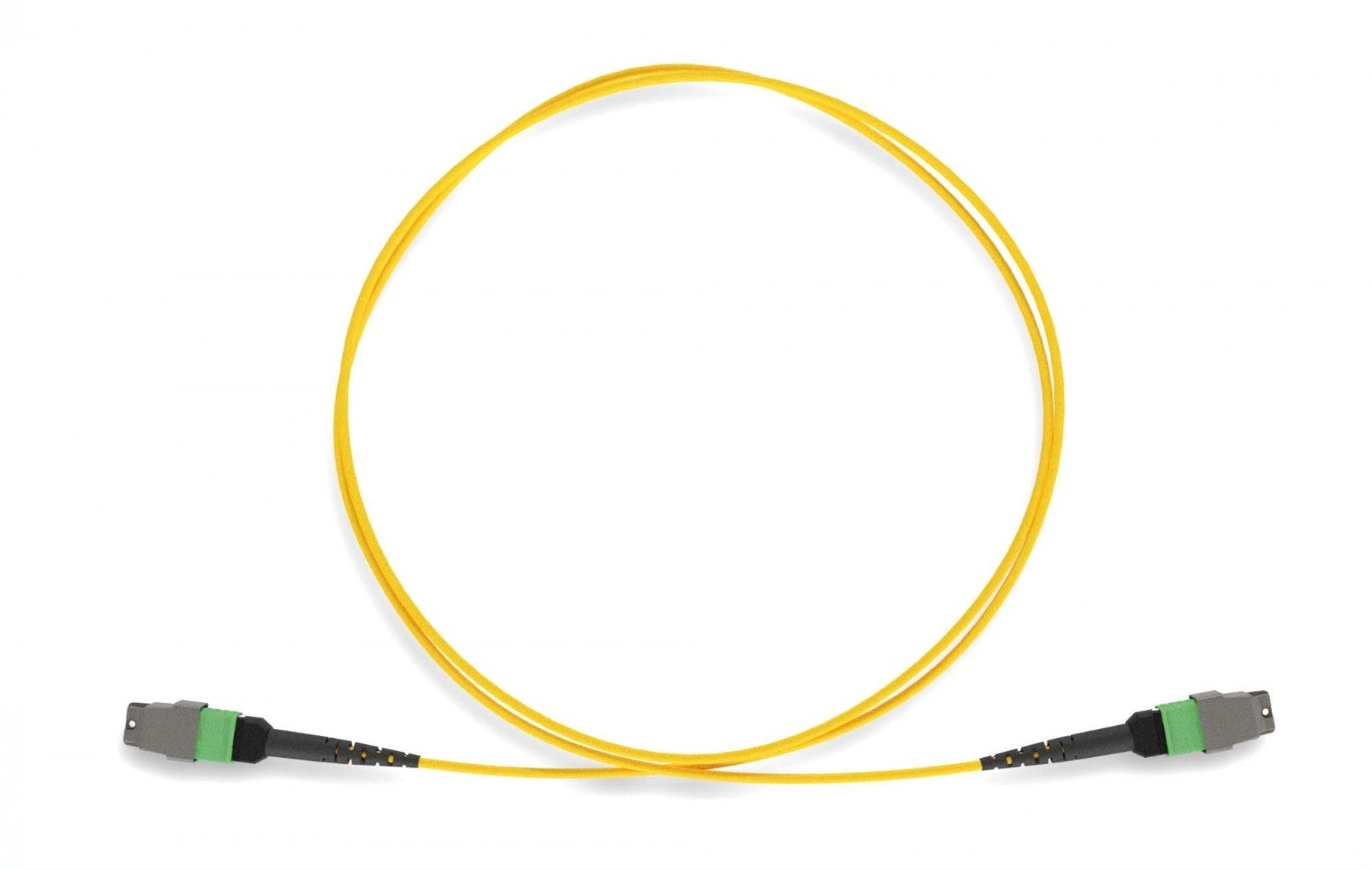

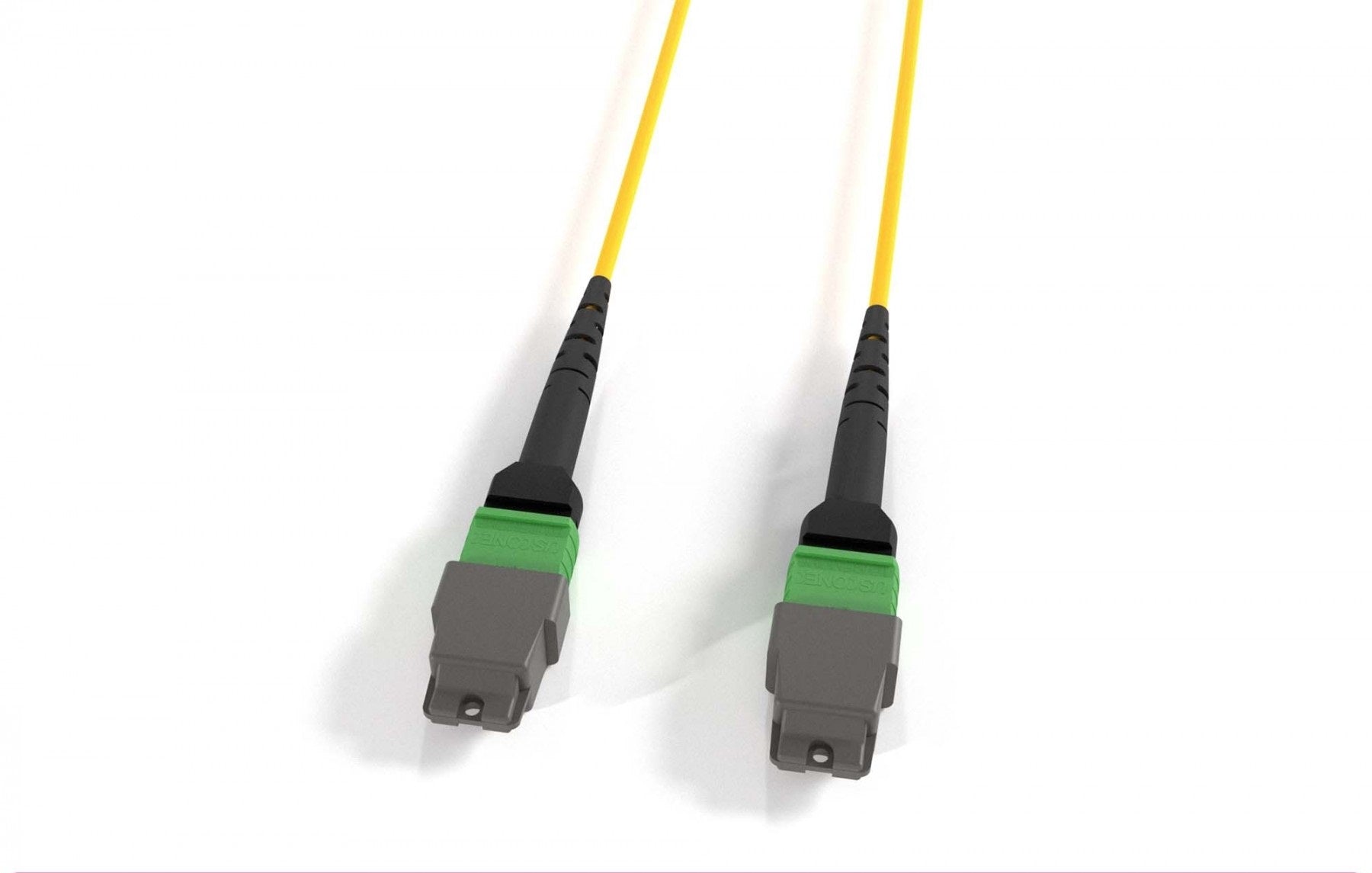

Nippon Labs MTP® OS2 9/125 Single-Mode 12 Fibers Trunk Optic Cable Type B, 1M ~ 12M

Nippon Labs MTP® OS2 9/125 Single-Mode 12 Fibers Trunk Optic Cable Type B, 1M ~ 12M

Regular price $119.99 USD
Regular price Sale price $119.99 USD
Sale Sold out
Lengths

MTP® OS2 9/125 SINGLE-MODE 12 FIBERS FEMALE TO FEMALE TRUNK CABLE TYPE B

  • MTP® OS2 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
  • OS2 fiber cable features higher bandwidth and transmission rates than OS1 cable.
  • OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
  • The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.
  • Connection type B (Reversed).
  • Corning® glass SMF-28 Ultra.
  • 100% 3D Tested.

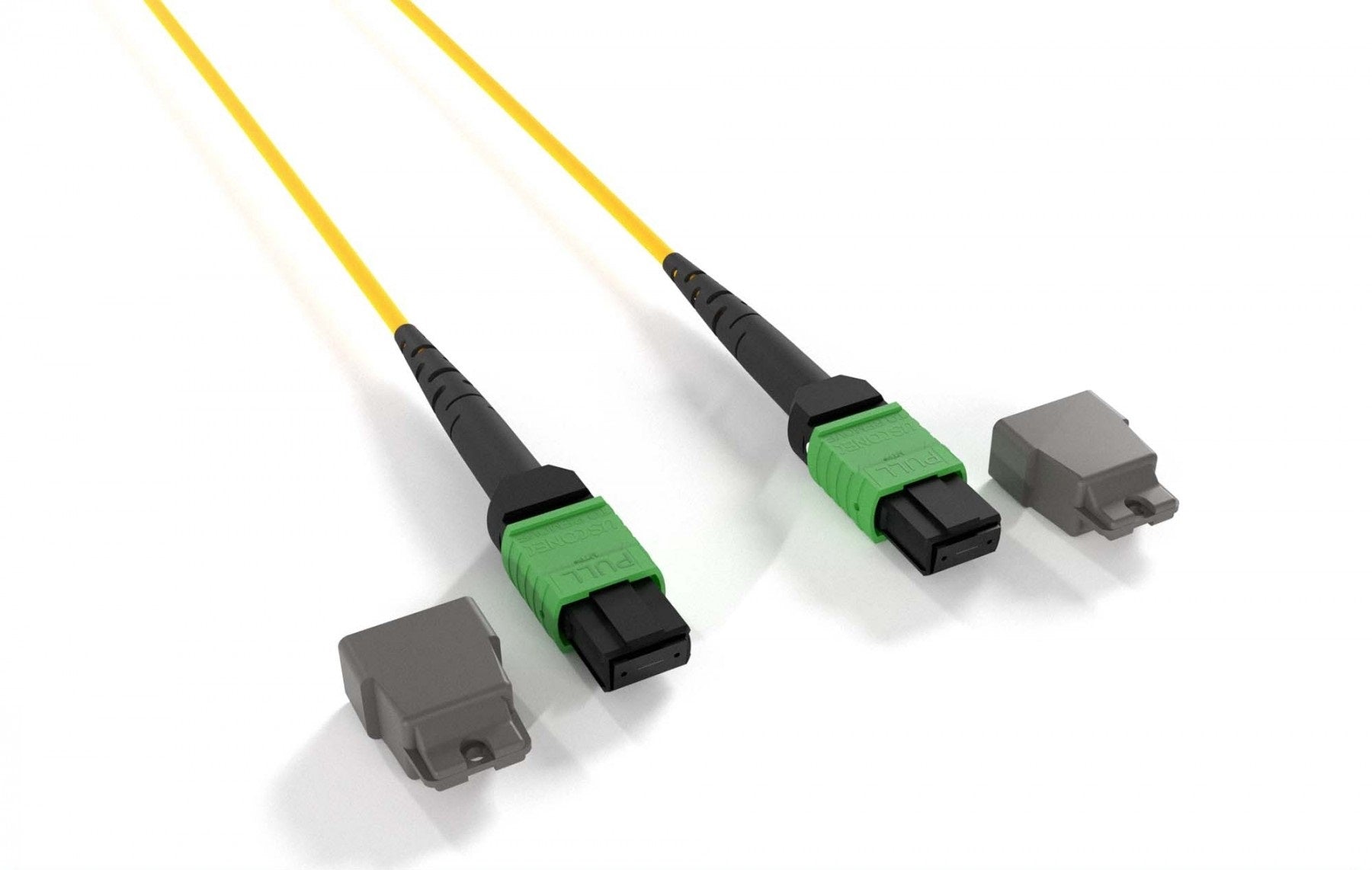

  • Dust protective cap included.
  • UL listed
Fiber Connector A: US Conec MTP® Female
Fiber Connector B: US Conec MTP® Female
Fiber Mode: OS2, Single-mode, 9/125
Fiber Count: 12 Fibers
Polish Type: APC to APC
Wavelength 1310/1550nm
Insertion Loss: ≤ 0.35 dB
Return Loss: ≥ 60 dB
Type (Method): Type B
Jacket OD: 3.0 mm
Fiber Grade: G.657.A1 (Compatible with G.652.D)
Jacket Material: OFNP (Plenum)
Jacket Color: Yellow
