Cat6 vs Cat6a: Which Do You Actually Need?

The short answer: if you are wiring a home or a standard office, Cat6 is almost certainly enough. If you are running 10 Gigabit to a workstation, wiring a server room, or installing cable you do not want to replace in eight years, Cat6a earns its extra cost. Here is the reasoning behind that.

What actually differs

Both categories carry 10 Gigabit Ethernet. The difference is how far.

• Cat6 is specified to 250 MHz and supports 10GBASE-T to 55 meters (180 feet), and only in low-interference conditions.
• Cat6a is specified to 500 MHz and supports 10GBASE-T across the full 100-meter (328 foot) channel.

That 55-meter figure for Cat6 is not a guarantee. It assumes favorable conditions. In a bundle of cables all carrying 10G, alien crosstalk (interference between adjacent cables rather than between pairs inside one cable) degrades it further. Cat6a is built specifically to resist that, which is why it is physically thicker.

The practical consequences

Cat6a's larger diameter is the tradeoff people underestimate. It fills conduit faster, has a wider bend radius, and is harder to terminate neatly. Running Cat6a everywhere in a house means more pathway problems for capability you may never use.

Cat6 is also cheaper per foot, and if your switches and NICs are gigabit, both categories perform identically. A gigabit link over Cat6 is not slower than a gigabit link over Cat6a.

Choosing

Cat6 is the right choice when: runs are under 55 meters, you are on gigabit equipment, you want easier pulls and terminations, or budget matters across a large number of drops.

Cat6a is worth it when: runs approach 100 meters, you are deploying 10G now or expect to within the life of the install, you are wiring a data center or an environment with dense cable bundles, or the cable is going somewhere you will not want to open again.

For most residential and light commercial work, Cat6 in the walls with Cat6a patch cables at the rack is a sensible split. You get the headroom where the density is and avoid the pathway problems everywhere else.

One thing to check regardless

Whichever category you buy, confirm the conductor is solid bare copper rather than copper-clad aluminum (CCA). CCA is cheaper, and it is also more brittle, higher resistance, and non-compliant with TIA/EIA standards. It fails PoE applications in particular, where the resistance shows up as heat. A cable that says Cat6 but uses CCA is not really a Cat6 cable.

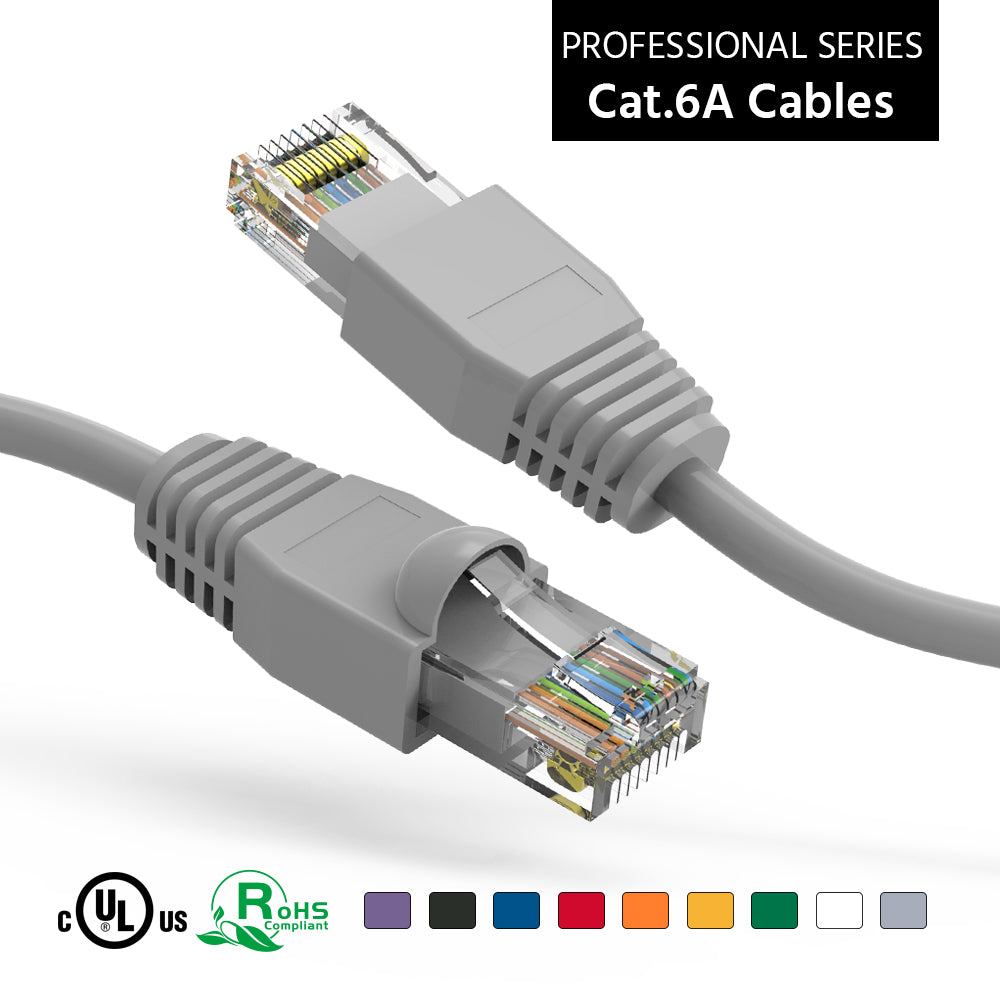

Nippon Labs Cat6 and Cat6a cables use solid bare copper and are UL and ETL listed to TIA/EIA standards.
