What Ethernet Cable Do You Need for 2.5G and 10G?

Short answer. For 2.5 Gigabit and 5 Gigabit, the cable you already have is very likely fine — those speeds were standardised specifically to run over existing Cat5e and Cat6 at the full 100 metres. For 10 Gigabit, Cat6A is the cable that carries it to 100 m; Cat6 manages it over a shortened run, and Cat5e is not specified for it at all.

What carries what

Why 2.5G exists at all

When Wi-Fi access points started to exceed a gigabit, the industry faced a problem: 10 Gigabit needed Cat6A, and the world was full of buildings wired in Cat5e. Rewiring them was not going to happen. So 2.5GBASE-T and 5GBASE-T were standardised in 2016 as intermediate speeds explicitly designed to work over that installed base — full distance, existing cable, new switch.

That is why a 2.5G upgrade at home is usually a shopping question rather than a construction one. Buy the router, switch or NAS; plug it into what is already there.

Where 10G gets fussy

10GBASE-T runs at a much higher frequency, and its limiting factor is usually not the cable in isolation but alien crosstalk — interference from the other 10G cables bundled beside it. That is why the Cat6 distance for 10G is quoted as a range rather than a number: a single cable in free air does better than one in the middle of a tight bundle of twenty.

Cat6A was designed around that problem, with tighter alien-crosstalk limits and, in many constructions, a shield or a separator to keep neighbouring cables at bay. If you want 10G at real distances, that is the cable to pull.

What usually limits you first

• The ports. Both ends have to support the speed. A 2.5G NAS on a gigabit switch links at gigabit.
• The terminations. At multi-gig speeds a sloppy punch-down or too much untwist at the plug will cost you more than the cable category ever will.
• The run length. Short runs are forgiving. A 5 m Cat6 patch will carry 10G without complaint; a 80 m one will not.
• Heat and power. A multi-gig switch with PoE is a warm device; a tight bundle of thin cable next to it is not helping.

Practical recommendations

• Upgrading to 2.5G at home: keep the cable, buy the gear. Test the link speed before assuming you need anything else.
• Pulling new cable anywhere: Cat6A. The labour is the expensive part and the headroom is cheap.

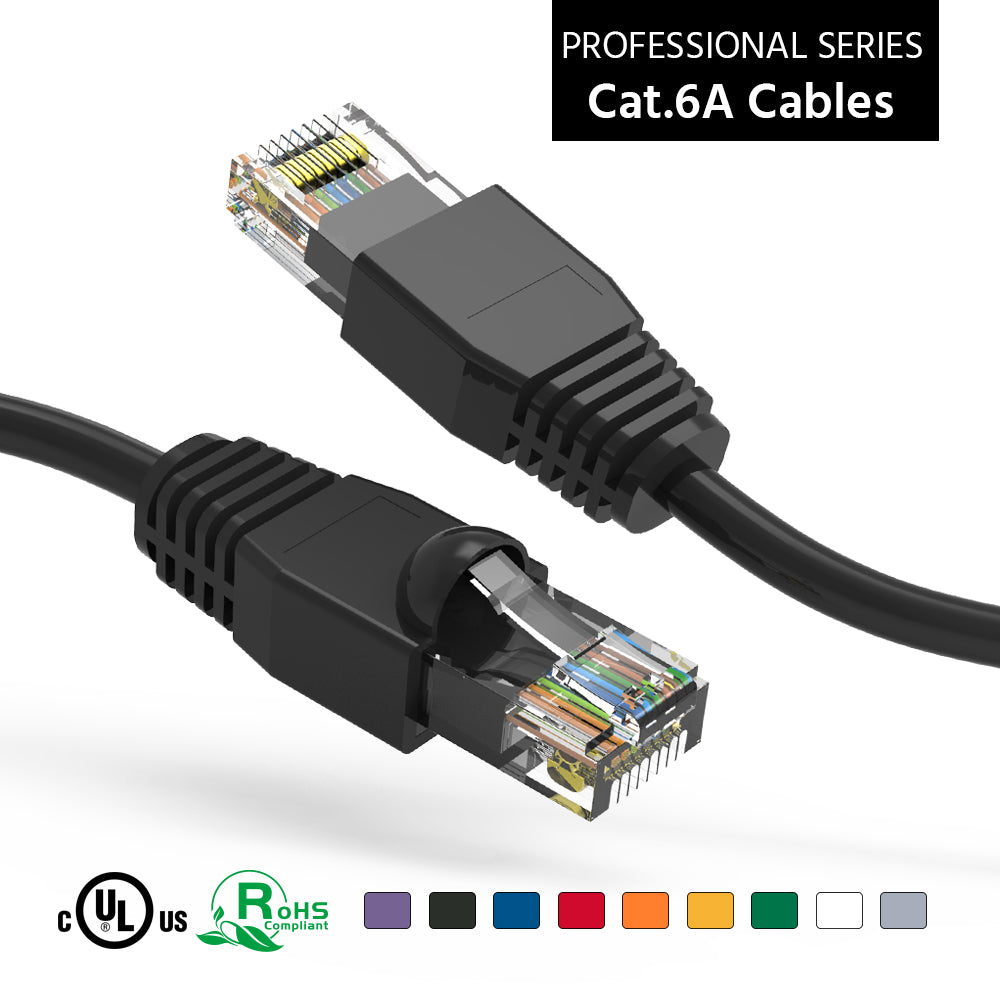

• Short 10G hops inside a rack: Cat6A patch cords, and slim ones if the cable manager is full.
• A single 10G link between two rooms: if the run is under about 35 m and not bundled with others, existing Cat6 will very likely carry it. Try it before you open a wall.

Common questions

Do I need Cat8 for 10G?
No. Cat8 is a data-centre specification aimed at 25 and 40 Gigabit over short runs of up to 30 m. It will carry 10G perfectly well, but Cat6A does that at full distance for less money and less bulk.

Will 2.5G work over my old Cat5e?
Very probably, at full distance — that is precisely what the standard was written for. Bad terminations or damaged cable are the usual reasons it does not.

Is 10G worth it at home?
Only if two devices actually need to move large files between each other — a NAS and a workstation, say. It will not make your internet faster, and most home traffic never comes close to a gigabit.

Can I mix speeds on one switch?
Yes. Each port negotiates independently, so a multi-gig switch happily runs 10G to a NAS and gigabit to a printer at the same time.
