Nippon Labs 18AWG Notebook Power Cord, Black NEMA 5-15P to C5, 3-Prong SVT

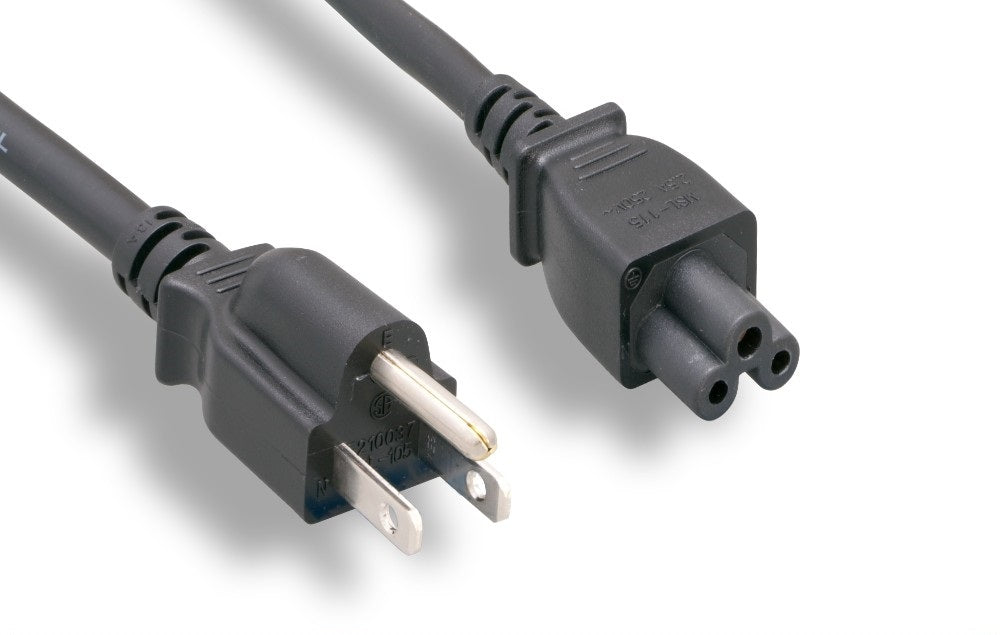

The three-pin "cloverleaf" or Mickey Mouse cord: a grounded NEMA 5-15P wall plug to an IEC 60320 C5 connector, 18 AWG SVT, rated 10A at 125V. It is the cord that feeds most laptop power bricks and a great many projectors, printers and small appliances with the three-lobed C6 inlet.

18/3 UL SVT 60°C BLACK COLOR NEMA 5-15P TO IEC-60320-C5

• This NEMA 5-15P to C5 power cord connects your laptops or notebooks with IEC-60320-C6 inlets.

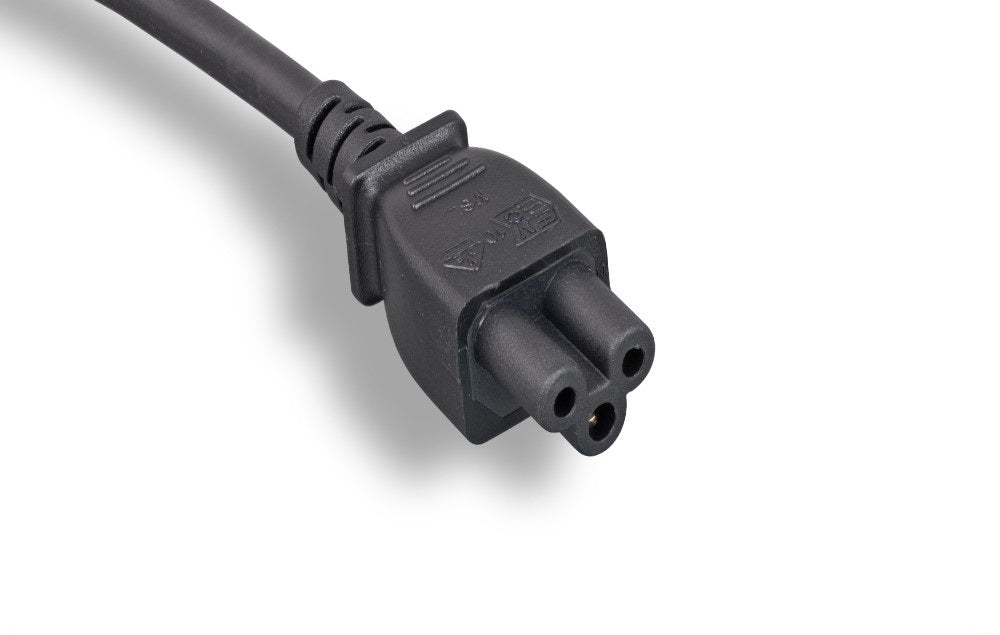

• IEC320 C5 connector is also known as "Mickey Mouse" plug.
• This heavy duty 18 AWG power cord is fully molded for durability.
• Ideal solution for replacing damaged, overused or missing 3-slot Mickey Mouse style power cords.
• UL, cUL listed and CSA approved.
• All relevant materials are complied with RoHS and REACH directive.

What it's for

• Laptop and notebook power adapters with a three-lobed inlet.
• Projectors, small printers and desktop appliances that specify a C6 inlet.
• Replacing a missing travel cord — this is one of the most commonly lost cables there is.
• Keeping a spare in a laptop bag, an AV cart or a meeting room.

Good to know

How do I tell C5 from C7?
Count the lobes. A C5 inlet has three rounded lobes in a clover shape and includes an earth connection; a C7 has two lobes and no earth. They do not interchange.

Does the grounded version matter?
If the device has a C6 inlet, it was designed for an earthed supply and should be given one. Do not substitute a two-pin cord by forcing a different connector.

What does 18 AWG mean here?
AWG is conductor thickness, and the scale runs backwards — a lower number is a thicker wire. At 18 AWG this cord is built to carry its rated 10A at 125V without the conductors heating up. A thinner cord with a higher AWG number carries less current.

What is a SVT jacket?
SVT is a lighter thermoplastic jacket rated for service duty — flexible, and normal for notebook and small-appliance cords.

How much load can I actually put on it?
The cord is rated 10A at 125V. The usual engineering practice is to keep a continuous load at or below 80% of a circuit or cord rating and leave headroom for inrush when equipment powers on, so size the cord to the equipment rather than to the outlet.
