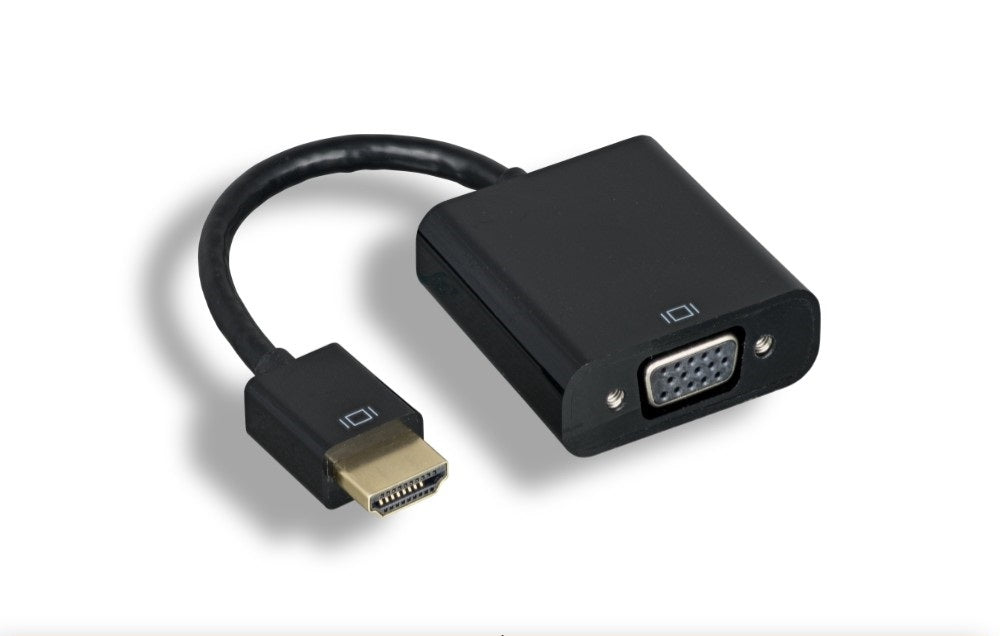

Nippon Labs HDMI to VGA Converter with Audio and Power, HDMI Male to VGA Female, Black

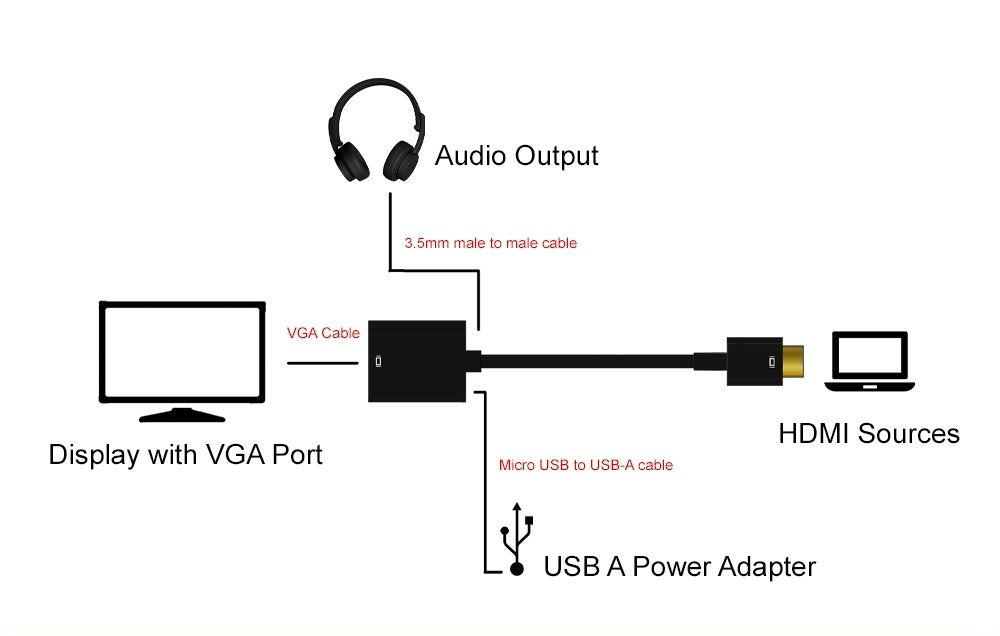

A converter that takes an HDMI output and turns it into VGA, with a separate 3.5mm audio output so sound is not lost along the way. The HDMI male end plugs into a computer, laptop, tablet or similar source, and the VGA (HD15) female end accepts the cable running to a monitor or projector. It is the part you need when a current laptop has to drive an older display or a meeting room projector that only offers VGA.

Specifications

• Type: HDMI to VGA converter
• Connector A: HDMI male
• Connector B: VGA (HD15) female
• Audio: 3.5mm audio port, audio and video transmitted at the same time
• Power: micro USB charging input for devices with low power output, such as an Apple MacBook Pro with Retina Display
• Maximum VGA output: 1080p
• Analogue video output: up to UXGA and 1080p with a 10-bit DAC
• HDMI input bandwidth: 165MHz, 1.65Gbps per channel, 6.75Gbps across all channels
• Colour: black

Good for

• Connecting a laptop to a conference room projector that only has a VGA input
• Reusing an older 1080p or UXGA monitor with a computer that has no VGA output
• Getting sound to powered speakers or a soundbar through the 3.5mm output while the picture goes to a VGA display

FAQ

Does it carry audio, or only picture? Both. The converter has a 3.5mm audio port and transmits audio and video signals at the same time, which matters because VGA is video only.

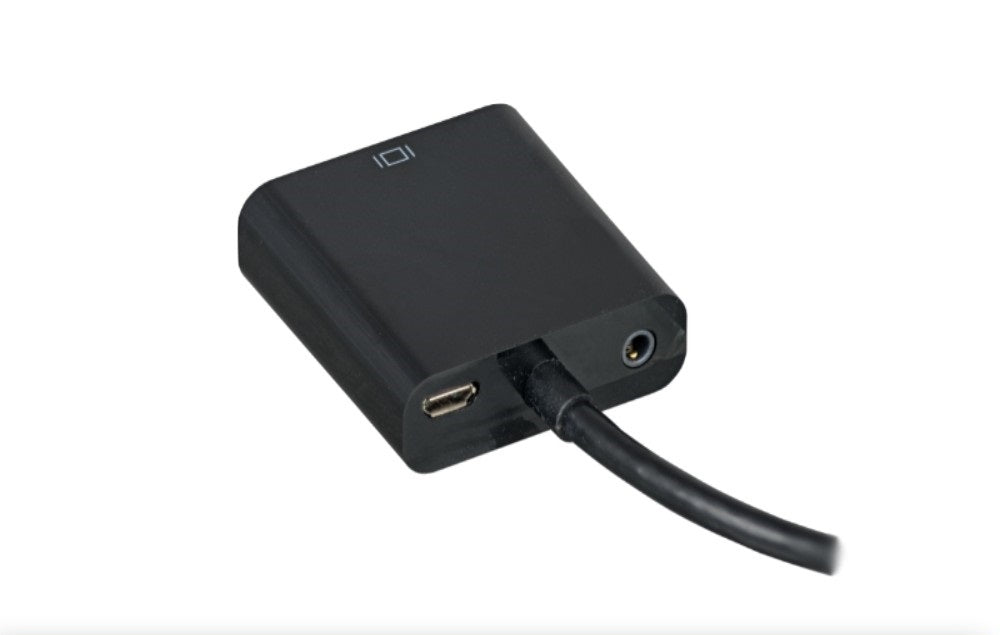

Do I have to plug in the micro USB? It is there for sources with low power output, such as an Apple MacBook Pro with Retina Display. If your device cannot supply enough power through the HDMI port on its own, use the micro USB input.

What resolution can I get out of it? VGA output runs up to 1080p, and the analogue video output reaches UXGA and 1080p using a 10-bit DAC. The HDMI input side handles 165MHz, which is 1.65Gbps per channel or 6.75Gbps across all channels.
