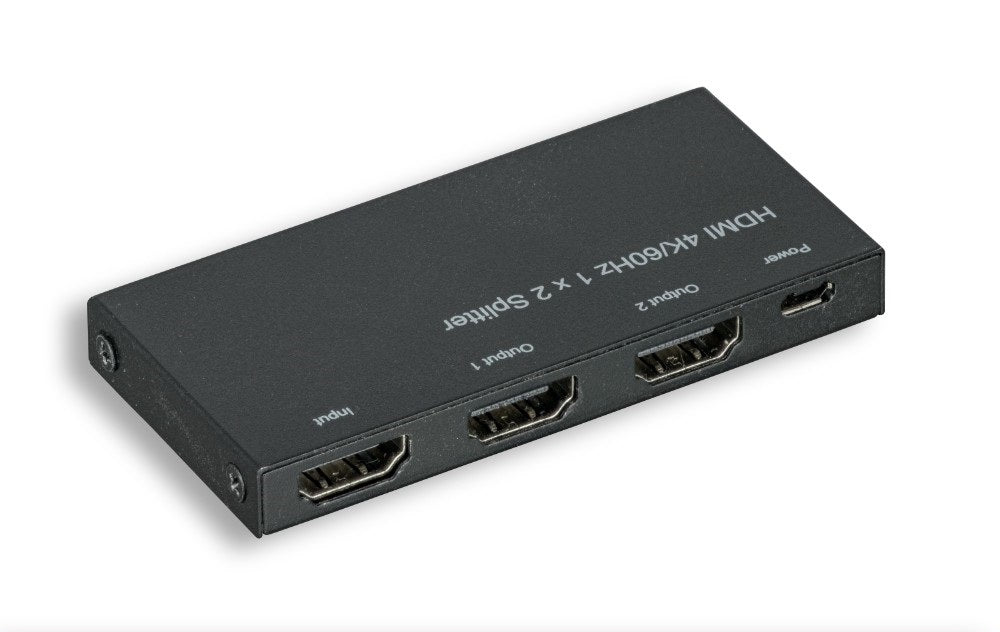

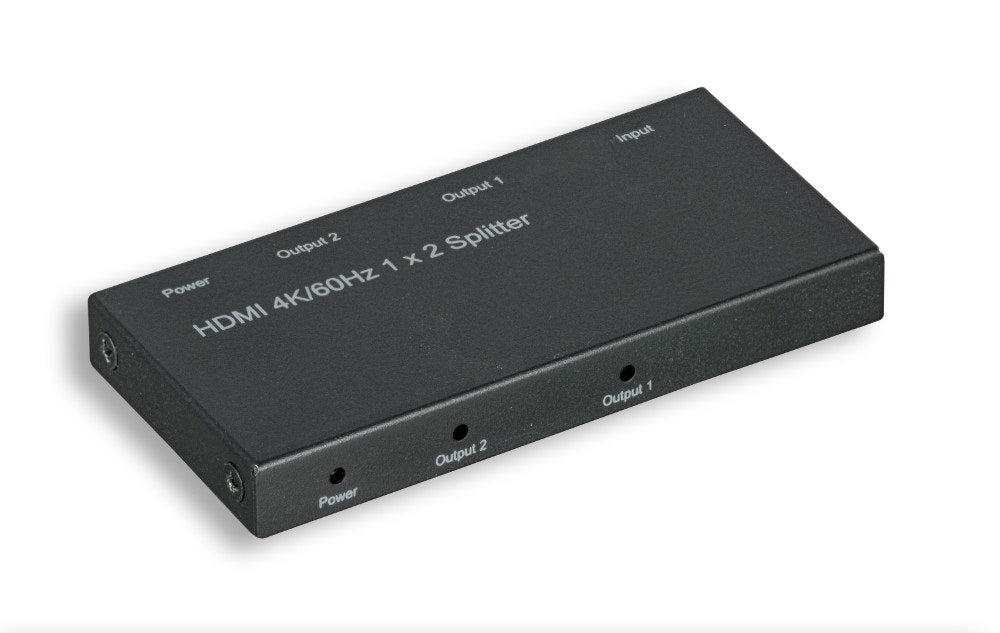

Nippon Labs HDMI 1x2 Splitter, Black 1 In 2 Out, 4K 60Hz HDR, HDCP 2.2

A 1-in, 2-out HDMI splitter that sends one source to two screens at the same time, with the same picture on both. Use it to mirror a cable box, streaming stick, PC or game console to a second TV, a projector or a lobby display, at up to 4K 60Hz with HDR.

Specifications

• Input: 1 x HDMI female
• Outputs: 2 x HDMI female (identical signal)
• Resolution: up to 4K at 60Hz, HDR
• Bandwidth: 18Gbps (HDMI 2.0 class)
• Color: 12-bit deep color, RGB 4:4:4, YCbCr 4:4:4, 4:2:2 and 4:2:0
• HDCP 2.2 and 1.4
• 3D supported
• Cascadable up to 8 levels
• Power: via the included Micro USB to USB-A cable
• RoHS compliant

In the box

• Splitter unit

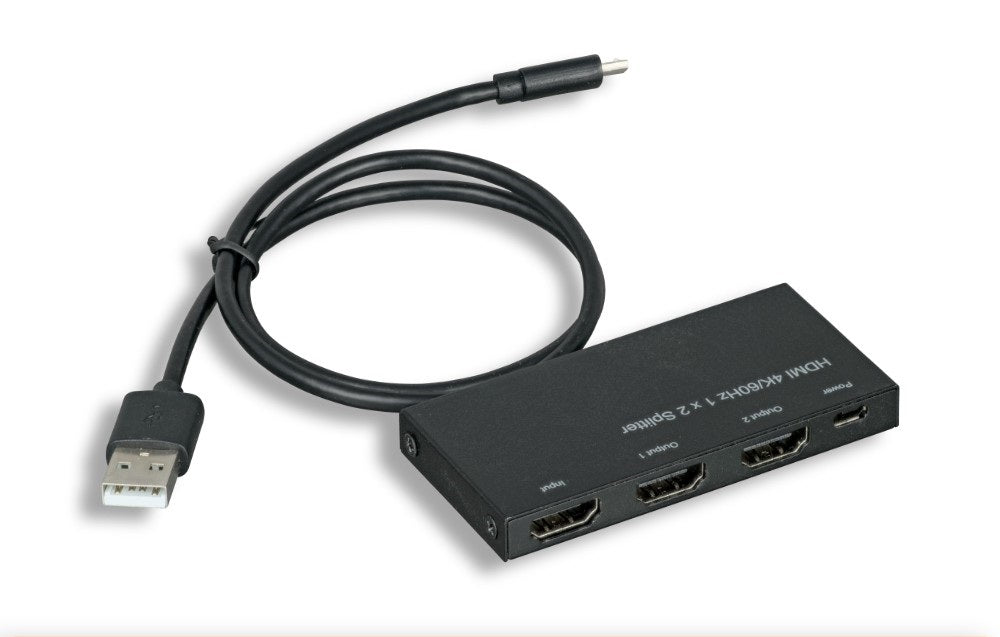

• Micro USB to USB-A power cable
• User manual

Good for

• Mirroring one source to a TV and a projector
• Restaurant, bar, retail and lobby displays showing the same content
• Classrooms and meeting rooms with a main screen and a confidence monitor

FAQ

Can I show different content on each screen? No. A splitter duplicates one source. To send different content to each display you need a matrix switcher or separate sources.

What if my two TVs are different resolutions? The splitter outputs one signal to both. If one screen is 1080p and the other is 4K, set the source to the resolution the lower screen supports for reliable results.

What powers it? Plug the included USB cable into a USB port or any USB wall charger.
