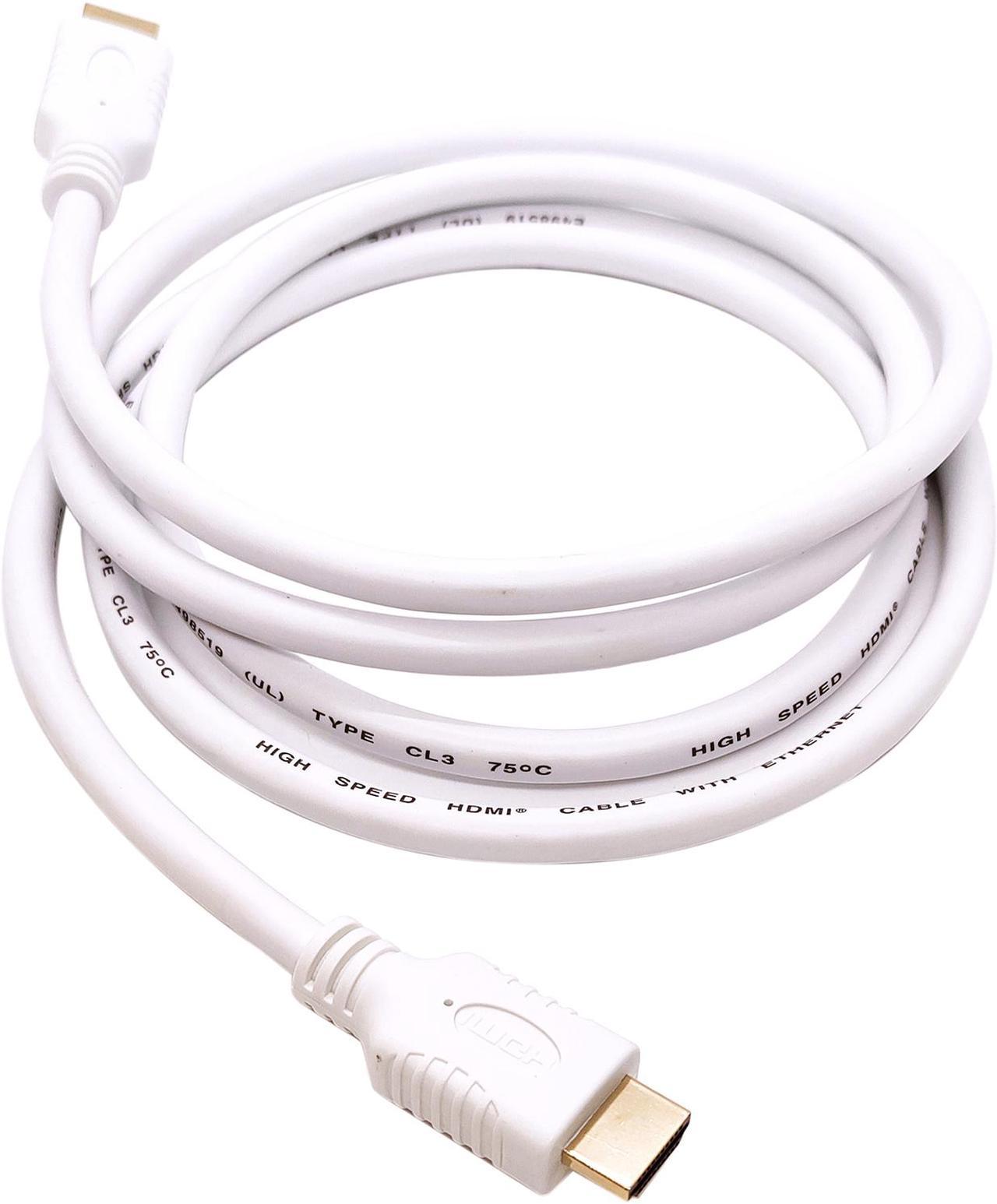

Nippon Labs 4K HDMI 2.0 Cable, 28AWG CL3 In-Wall, 18Gbps 4K 60Hz HDR, 25 ft

A CL3 rated 4K HDMI cable in a single 25 ft length, sized for an in wall run to a wall mounted TV or a ceiling projector. It carries the full 18Gbps of HDMI 2.0, so 4K at 60Hz with HDR arrives intact, and ARC sends audio back to a soundbar. CL3 is the higher of the two common in wall voltage ratings, so it suits installers who want the safer rating on the pull.

Specifications

• Standard: HDMI 2.0, 18Gbps
• Video: 4K at 60Hz with HDR
• Audio: ARC
• Conductor: 28 AWG passive copper
• Wall rating: CL3
• Length: 25 ft

Good for

• An in wall run from a wall mounted 4K TV down to gear in a lower cabinet
• A projector feed pulled inside the wall and across the ceiling of a media room
• A new build or remodel where the inspector expects a CL3 jacket behind the drywall

FAQ

What does the in wall rating mean? CL2 and CL3 rated jackets are approved to be run inside a wall. CL3 carries the higher voltage rating of the two. If the cable instead has to pass through an air return space above a drop ceiling or under a raised floor, code calls for a plenum rated cable, and our active optical HDMI range covers that.

Which conductor gauge do I need? A lower AWG number means thicker copper, which holds the signal over a longer run. As a rule of thumb, 28 AWG is fine for short desk and rack lengths, 26 AWG for medium runs, and 24 AWG for the longest passive copper runs. Past about 50 ft, an active optical cable is the more reliable choice.

Is 28 AWG enough at 25 ft? At 25 ft this cable is at the upper end of what 28 AWG holds at the full 18Gbps. It is a sound choice at this length, but if your run is longer, or you want more margin because the cable is going somewhere you cannot easily reach again, look at the 26 AWG and 24 AWG versions in this range.
