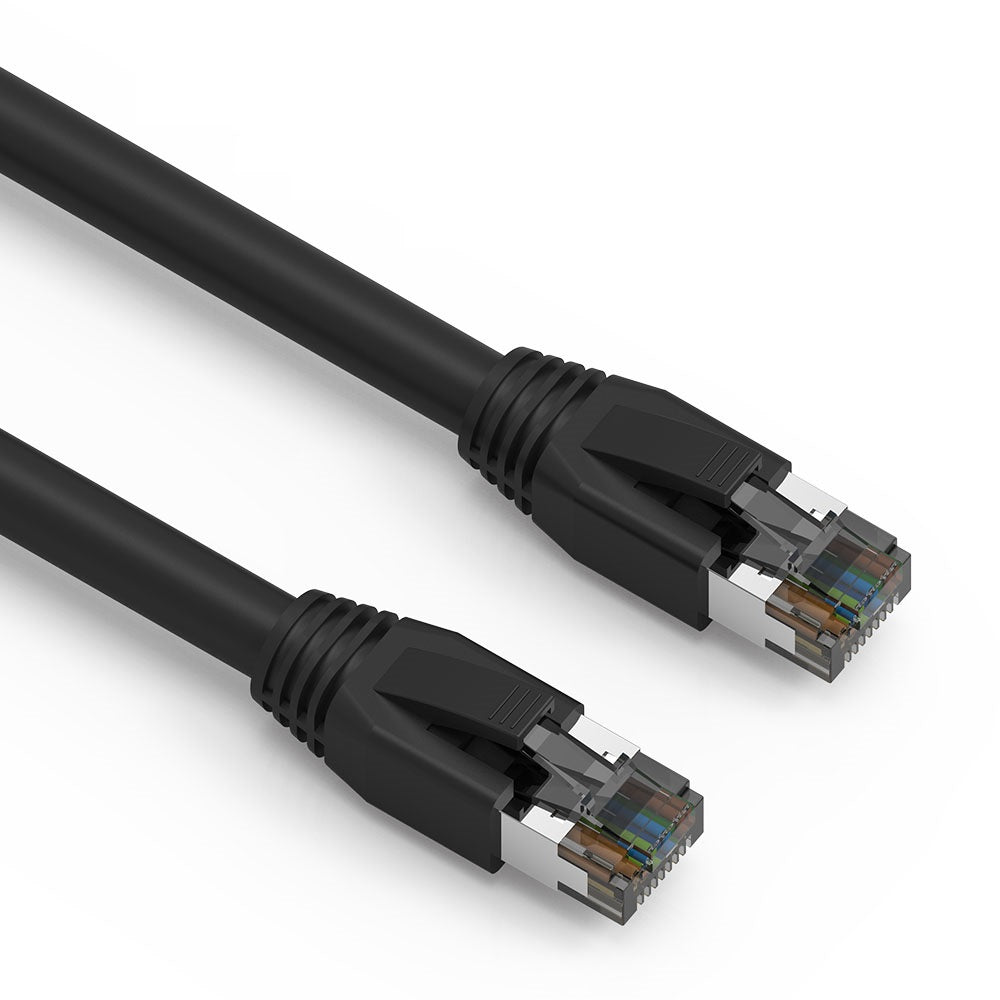

Nippon Labs Cat8 Weatherproof Ethernet Cable, 24AWG S/FTP, 40Gbps 2000MHz RJ45

This is the Nippon Labs Cat8 patch cable in its standard build: 24AWG pure copper, S/FTP shielded and terminated in gold-plated RJ45 connectors at both ends. It is rated for 40Gbps at 2000MHz, which puts it in switch to switch and switch to server territory rather than ordinary desktop runs. The weatherproof outer jacket is what separates it from the indoor Cat8 range, so this is the one to reach for when any part of the run sits outside or in an exposed spot.

Specifications

• Category: Cat8
• Conductor gauge: 24AWG
• Conductor material: pure copper core

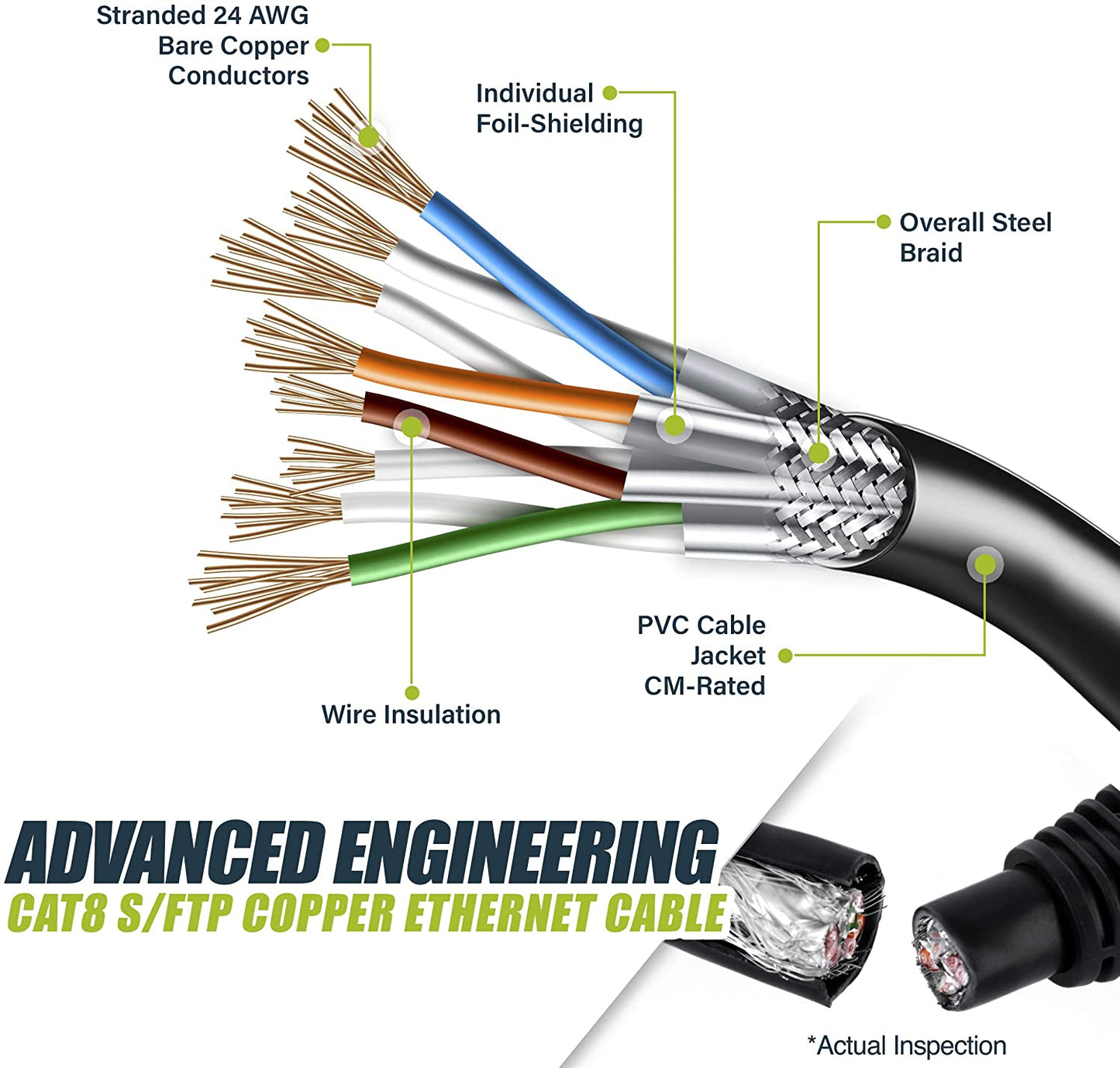

• Shielding: S/FTP, individually shielded pairs plus an overall shield, using aluminum foil and a woven mesh braid
• Bandwidth: 2000MHz (2GHz)
• Maximum data rate: 40Gbps
• Supported standards: 25GBASE-T and 40GBASE-T

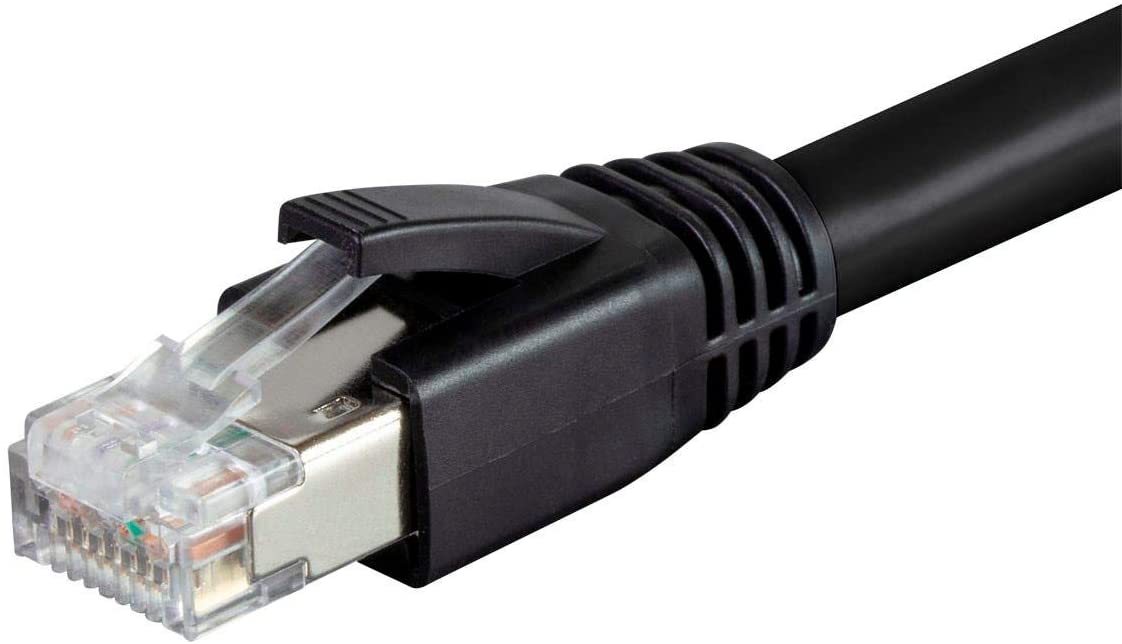

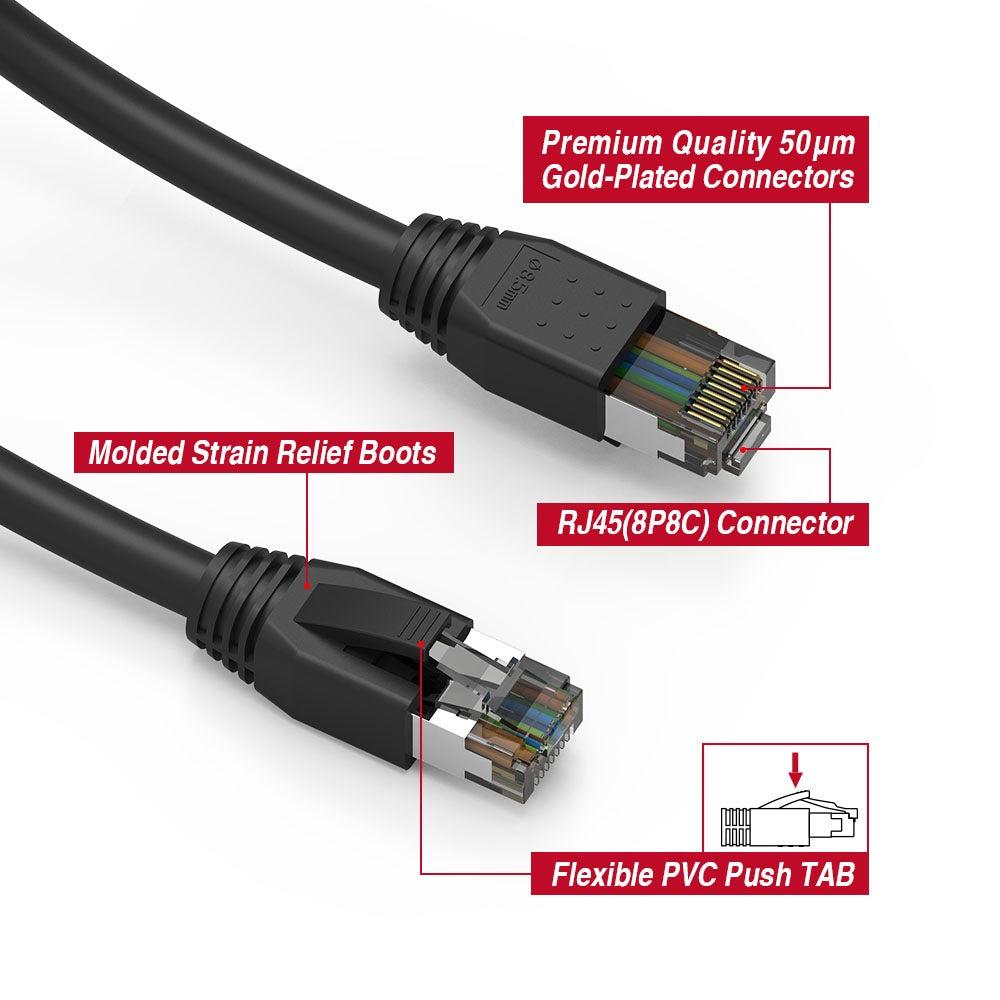

• Connectors: two gold-plated RJ45
• Jacket: weatherproof PVC outer cover
• Rating: UL rated
• Backward compatibility: Cat5, Cat5e, Cat6, Cat6a and Cat7 cabling and equipment
• Lengths available: 0.5, 1, 2, 3, 5, 7, 10, 15, 25, 35 and 50 ft

Good for

• Running a link from the main building out to a detached garage, shed or workshop
• Feeding a rooftop or exterior mounted IP camera where the cable sits in the open
• Replacing an indoor patch cable on a run that turns out to pass through an unheated or exposed space

FAQ

Do I actually need Cat8? Cat8 is built for 25 and 40 Gigabit over short runs, up to 30 meters, which in practice means switch to switch and switch to server links inside a rack or a small equipment room. For ordinary Gigabit or 10 Gigabit runs across a building, Cat6 or Cat6A is the right choice and costs less.

Will it work with my existing gear? Yes. Cat8 uses the same RJ45 connector and is backward compatible, so it runs at whatever speed your router, switch or console supports. You will not see 40 Gigabit unless both ends have 40 Gigabit ports.

Does the colour affect performance? No. Every colour is the same cable inside. Colour is only for tracing and organising runs.

What lengths can I get? Eleven lengths, from 0.5 ft up to 50 ft: 0.5, 1, 2, 3, 5, 7, 10, 15, 25, 35 and 50 ft. Pick the length from the options on this page.
